Pure Green Triple Digit LED Display 7 Segment Common Cathode for Refrigerator

Pure Green Triple Digit LED Display 7 Segment Common Cathode for Refrigerator

ब्रांड नाम:	LIGHTBO
मॉडल संख्या:	LB30671EJYR-एस
एमओक्यू:	1000
कीमत:	Negotiate
भुगतान की शर्तें:	टीटी, वेस्टर्न यूनियन
आपूर्ति करने की क्षमता:	30000PCS/दिन

विस्तृत जानकारी

उत्पाद का वर्णन

विस्तृत जानकारी

उत्पत्ति के प्लेस:

शेनझेन, चीन

प्रमाणन:

ISO9001&ROHS

polarity:

सामान्य कैथोड

रंग छोड़ना:

अल्ट्रा व्हाइट/शुद्ध हरा

सामग्री:

पीसीबी, एपॉक्सी, एलईडी चिप, प्लास्टिक

प्रयोग:

भीतर और बाहर

आवेदन:

रेफ़्रिजरेटर

विशिष्टता:

37.9 x 20.45 x 5.75 मिमी

शेनझेन, चीन

पैकेजिंग विवरण:

ईपी+कार्टन

आपूर्ति की क्षमता:

30000PCS/दिन

प्रमुखता देना:

7 segment LED display common cathode

triple digit LED refrigerator display

green 7 segment LED display

उत्पाद का वर्णन

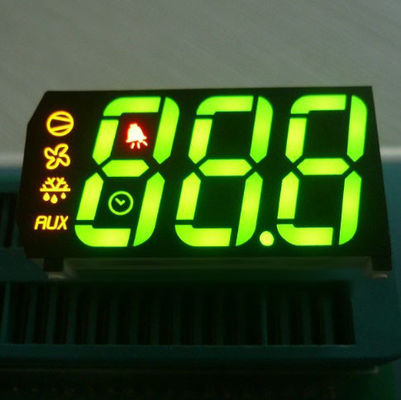

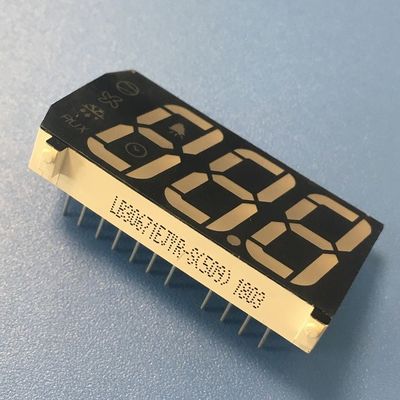

Pure Green Triple Digit 7-Segment LED Display

Customized 3-digit common cathode 7-segment LED display designed for refrigerator temperature control and other industrial applications.

Product Specifications

Digit height: 17mm (0.67 inch)
Dimensions: 37.9 * 20.45 * 5.75mm
Polarity: Common cathode
Emitting color: Pure green / white
Forward voltage per LED: 2.8-3.2V
Forward current: 5-10mA per LED
White segments with black surface and yellow diffused film
Available colors: Red, blue, green, white, amber, yellow, orange

Applications

Audio equipment and instrument panels
Home electronic appliances
Numeric displays
Multimedia products
Digital indicators, temperature indicators, humidity indicators, process indicators

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Electrical & Optical Characteristics

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6	-	3.2	V
Reverse Voltage	Vr	Ir=10uA	5	-	-	V
Luminous Intensity	Iv	If=10mA	120	-	180	mcd
Wavelength	Dλ	If=10mA	515	-	525	nm

Additional color variants available including Yellow Green, Amber/Yellow, Orange, Super Bright Red, Ultra Bright Red, Ultra Bright Blue, and Ultra Bright White with detailed specifications available upon request.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems.

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, specializing in R&D, manufacturing and sales of optoelectronic LED displays. ISO 9001:2015 Quality Management Systems certified with over 15 years of OEM and ODM experience.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping Services

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED Displays, Dot Matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through Hole LEDs, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is approximately 10-20 days, depending on order quantity and raw materials. For urgent orders with available materials, we can complete within 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you provide FOB prices?

A: Yes. We quote prices based on INCOTERMS including EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website.

Q9: Can I negotiate prices?

A: Yes, we offer discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping costs depend on shipment size and method. We provide quotes upon request.

Q11: Do you offer custom design services?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: Will you keep my custom design confidential?

A: Yes, we will not share or sell your design to others without authorization.

Q13: What is the lead time for customized product samples?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and design approval.

Q14: What shipping methods do you use?

A: We ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct 100% testing of all products twice before shipment.
